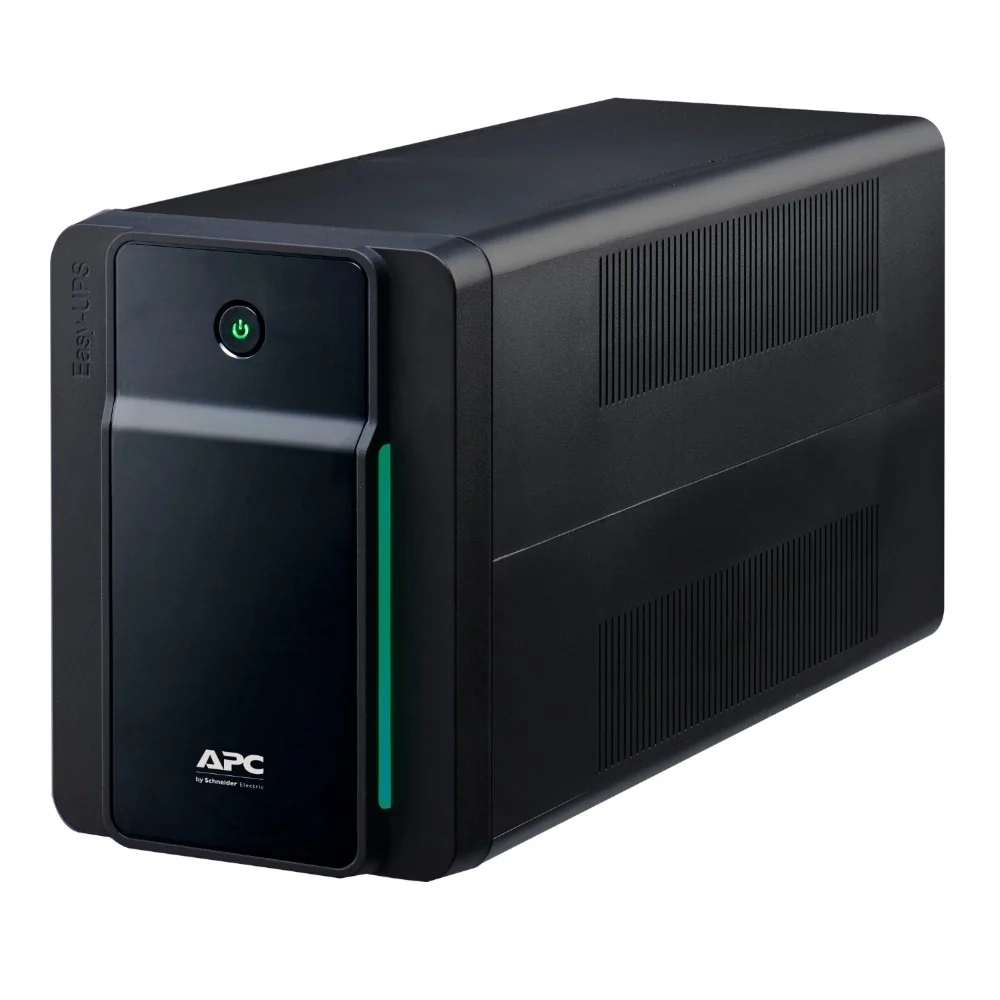

BVX1200L-LM APC 1200VA/650W BATTERY BACK UP 120V (6) OUTLETS
Description
⚡ Power Output & Performance
- Output Power Capacity: 1200 VA / 650 Watts
- Nominal Output Voltage: 120V AC (Single Phase)
- Output Frequency: 50/60 Hz +/- 1 Hz (Synchronized to mains)
- Waveform Type: Stepped approximation to a sine wave
- Transfer Time: 6 ms typical (10 ms maximum) [1, 2, 3, 4, 5]
🔌 Electrical Input & Outlets
- Nominal Input Voltage: 120V AC [1, 2]
- Input Frequency: 50/60 Hz +/- 5 Hz (Auto-sensing) [1]
- Input Plug Connection: NEMA 5-15P (Standard 3-prong US plug) [1, 2]
- Total Outlets: 6 NEMA 5-15R Sockets
- 4 outlets provide both Battery Backup and Surge Protection.
- 2 outlets provide Surge Protection only. [1, 2, 3, 4]
🔋 Battery & Backup Runtime
- Battery Type: Maintenance-free sealed lead-acid battery (12V, 9.0 Ah) [1, 2]
- Typical Recharge Time: 6 to 8 hours [1, 2]
- Expected Battery Lifespan: 2 to 3 years [1]
- Estimated Runtime:
- Half Load (325W): ~6 minutes
- Full Load (650W): ~1 minute
- Standard Desktop PC + Monitor: ~20-25 minutes [1, 2, 3]
🛡️ Protection & Environmental
- Surge Protection Rating: 350 Joules
- Voltage Regulation (AVR): Boosts low voltage and trims high voltage automatically without pulling from the battery.
- Acoustic Noise: < 40 dBA at 1 meter
- Operating Temperature: 0°C to 40°C (32°F to 104°F) [1, 2, 3, 4]
⚖️ Physical Dimensions
- Dimensions (H x W x D): 19.0 cm x 14.0 cm x 39.0 cm (7.48" x 5.51" x 15.35")
- Net Weight: 7.5 kg (16.53 lbs)
- Power Cord Length: 1.52 meters (5 feet)
|
